Outdoor front service energy saving LED display

Energy saving

Front service

Slim and light weight

PDF DownloadInquiry
  • Description

Outdoor Energy saving and front service LED display is a unique product series of visualpower.

Compared to common LED displays, its circuit design is specially designed and use different voltage for differnet color LED chips, thus can save about 2/3 power energy.

With front service module design which can be detached by hex wrench, it can be widely used for middle to big size outdoor LED signs which are fixed on the wall or there is limited space behind the LED display.

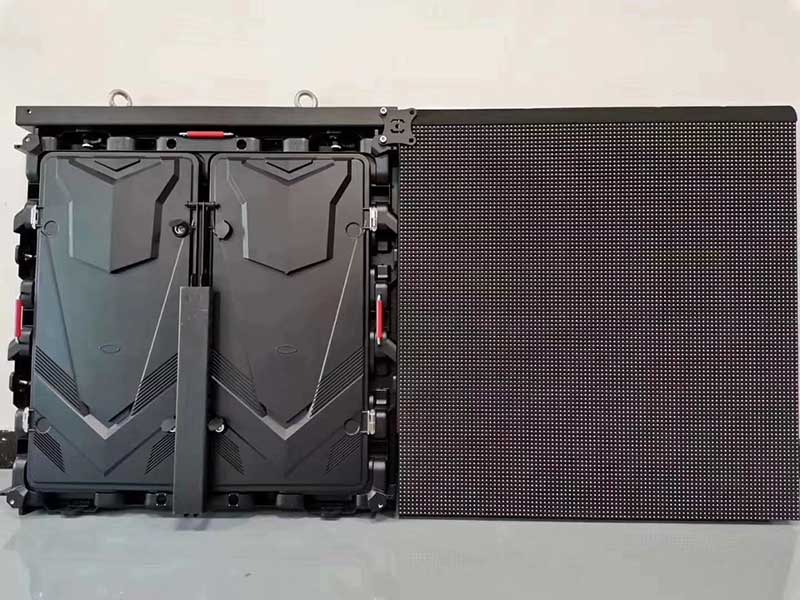

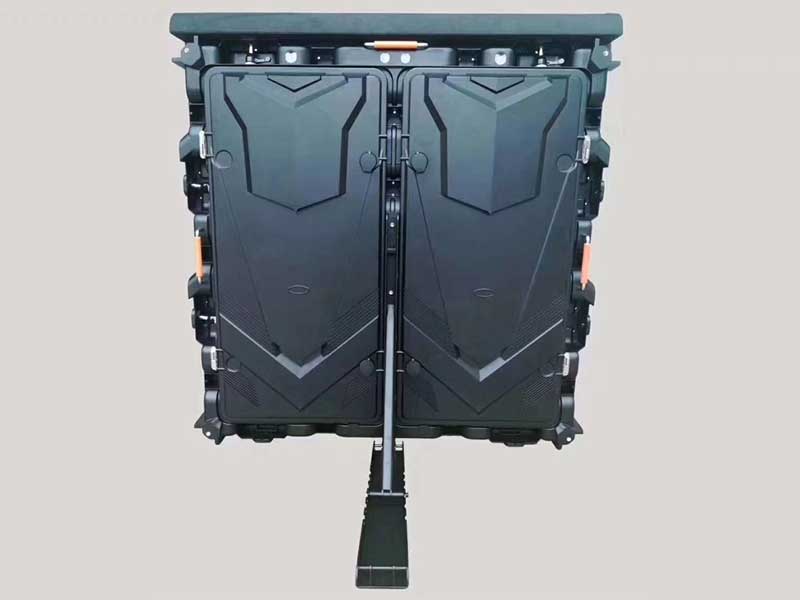

The cabinet can use 960*960mm aluminum-magnesium die casting type which support both hanging and stacking installation. and the cabinet structure can be modifed to make perimeter sports LED tickers(remarks: if do perimeter with this cabinet, the modules will be back service, the front service type module does not have soft rubber mask).

Or for fixed installation, can also consider to do it iron cabinet with closed housing.


Outdoor front service energy saving aluminum-magnesium die casting cabinet series

Model P5.9 P8 P10
Pixel configuration SMD2727 SMD3535 SMD3535
Pixel pitch 5.9259mm 8.00mm 10.00mm
Scan rate 1/7scanning, constant current 1/3 scanning, constant current 1/2 scanning, constant current
Module size (W×H) 320*320MM 320*320MM 320*320MM
Resolution per module W54 x H 54pixels W40 x H 40pixels W32 x H 32pixels
Standard cabinet dimension(W×H×D) 960×960×120mm 960×960×120mm 960×960×120mm
Pixel resolution/cabinet (W×H) 162 x 162pixels 120 x 120pixels 96 x 96pixels
Resolution/sqm 28,459dots/㎡ 15,625 dots/㎡ 10,000 dots/㎡
Minimum viewing distance Minimum 5 meters Minimum 8 meters Minimum 10 meters
Brightness 5500-6000CD/M2 5500-6000CD/M2 6000-6500CD/M2
Gray scale 14bit 14bit 14bit
Display Mode Synchronous with video source Synchronous with video source Synchronous with video source
Refresh rate ≥1920HZ ≥1920HZ ≥1920HZ
Viewing angle(degree) H/140,V/120 H/140,V/120 H/140,V/120
Temperature range -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃
Ambient Humidity 10%-99% 10%-99% 10%-99%
Service access Front Front Front
Standard cabinet weight 30kgs/㎡ 30kgs/㎡ 30kgs/㎡
Working Voltage DC R2.8V+GB3.8V DC R2.8V+GB3.8V DC R2.8V+GB3.8V
Working Current 3.5A+4.9A 3.8A+4.6A 3.7A+4.9A
Max.Power Consumption 570W/sqm 570W/sqm 570W/sqm
Ave. Power consumption 150W/sqm 145W/sqm 150W/sqm
Protection Level Front: IP65 Rear: IP54 Front: IP65 Rear: IP54 Front: IP65 Rear: IP54
Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr
LED Failure Rate <0,00001 <0,00001 <0,00001
MTBF > 10.000 hours > 10.000 hours > 10.000 hours
Input power cable AC110V /220V AC110V /220V AC110V /220V
Signal input DVI DVI DVI
