Ultra slim wall paper LED display

It is so far the slimmest LED display design for indoor application.

For wall mount displays, it can be fixed directly on the wall or wood cladding.

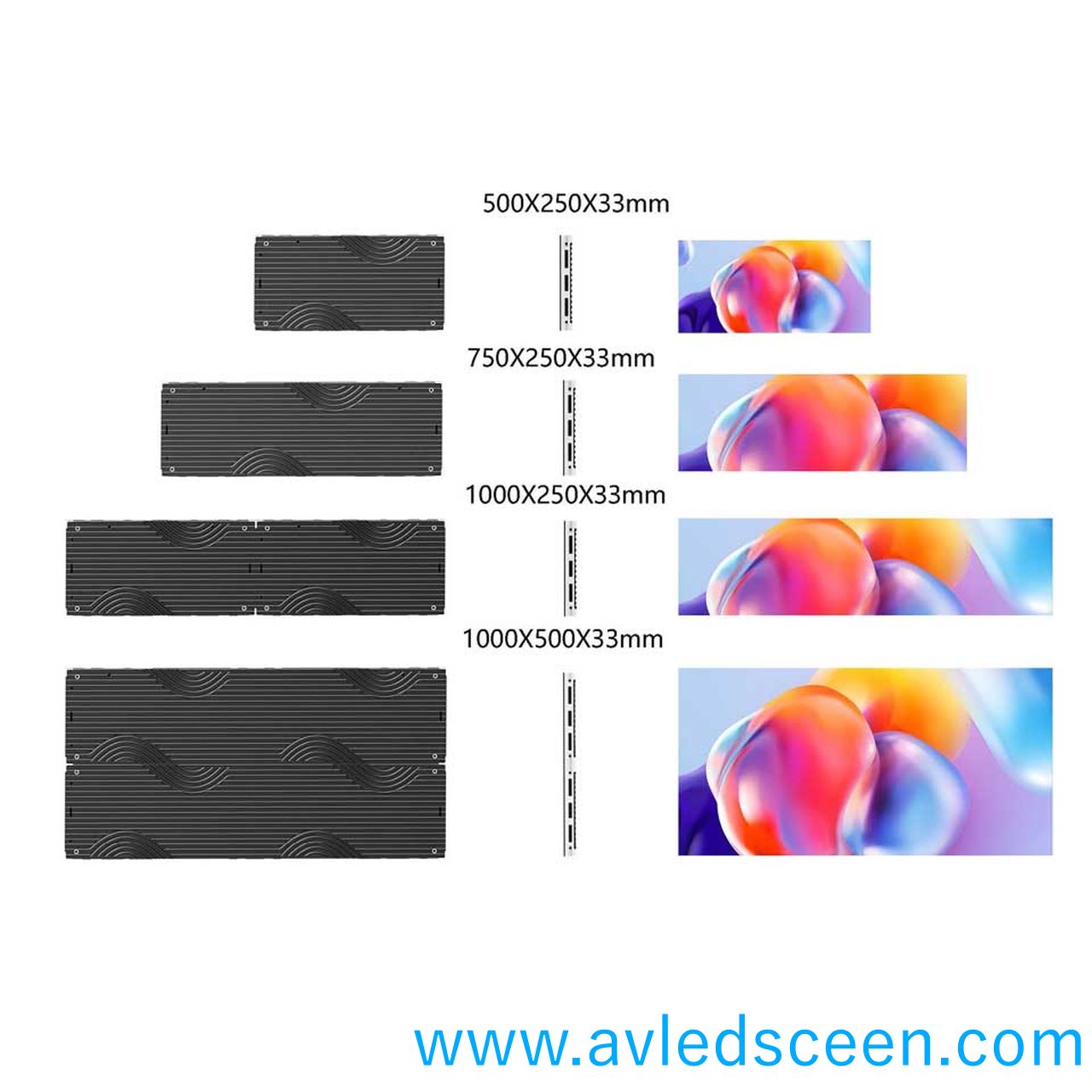

By W1000*H250mm size, it is suitable to make different display ratio and size.

Inquiry
  • Description

Wall paper series ultra slim LED display is only 33mm total thickness including modules and cabinets.

It is so far the slimmest LED display design for indoor application.

For wall mount displays, it can be fixed directly on the wall or wood cladding.

By W1000*H250mm size, it is suitable to make different display ratio and size.



Ultra slim wall paper LED display Specifications

Pixel pitch P1.56 P1.95 P2.5 P2.604 P2.976 P3.91
LED lamp SMD1212 SMD1515 SMD1515 SMD1515 SMD1515 SMD2121
pixel density(pixels/sqm) 409600 262144 160000 147456 112896 65536
Module resolution 160X160 128X128 100X100 96 x 96 84X84 64X64
Module size(mm) 250X250 250X250 250X250 250X250 250X250 250X250
Module layout(W*H) 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1
Panel resolution(W1000*H250mm) 640X160 512X128 400X100 384X96 336X84 256X64
maintenance way front front front front front front
Cabinet material alumimun alumimun alumimun aluminum alumimun alumimun
Brightness(cd/m2) 700 700 800 800 800-1000 1000-1200
Color temperature(K) 3200-9300 adjustable 3200-9300 adjustable 3200-9300 adjustable 3200-9300 adjustable 3200-9300 adjustable 3200-9300 adjustable
gray scale(bit) 16bit 16bit 16bit 16bit 16bit 16bit
Viewing angle(H/W) 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
brightness/color uniformity ≥97% ≥97% ≥97% ≥97% ≥97% ≥97%
contrast ratio 5000:1 5000:1 5000:1 5000:1 5000:1 5000:1
frame frequency 50/60 50/60 50/60 50/60 50/60 50/60
scan number 1/40 1/32 1/25 1/32 1/28 1/16
Max. power(w/m2) 600 600 600 600 600 600
Ave. power(w/m2) 200 200 200 200 200 200
