VE series W800*H1200mm outdoor fixed LED display

VE-800 series LED display is designed for high end outdoor fixed installation LED display projects.

It is specially designed W400*H300mm module size compatible with various popular outdoor pixel pitches such as P4.16/P5/P6.25/P8.33/P10.

support round corner 3D naked eye LED display

It is specially designed W400*H300mm module size compatible with various popular outdoor pixel pitches such as P4.16/P5/P6.25/P8.33/P10.

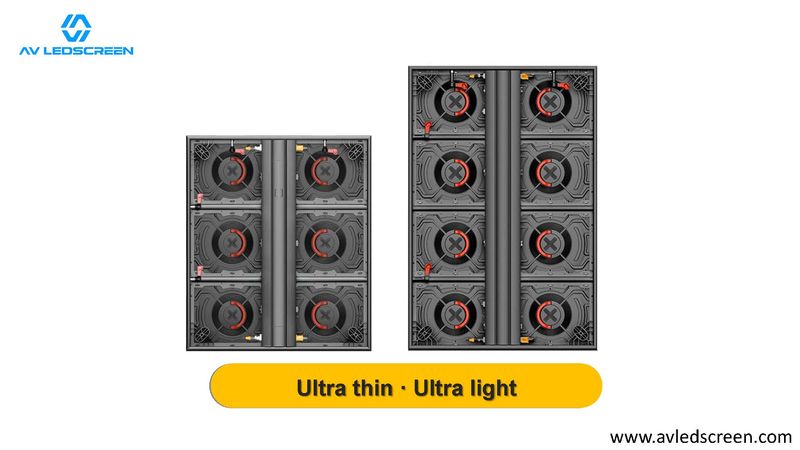

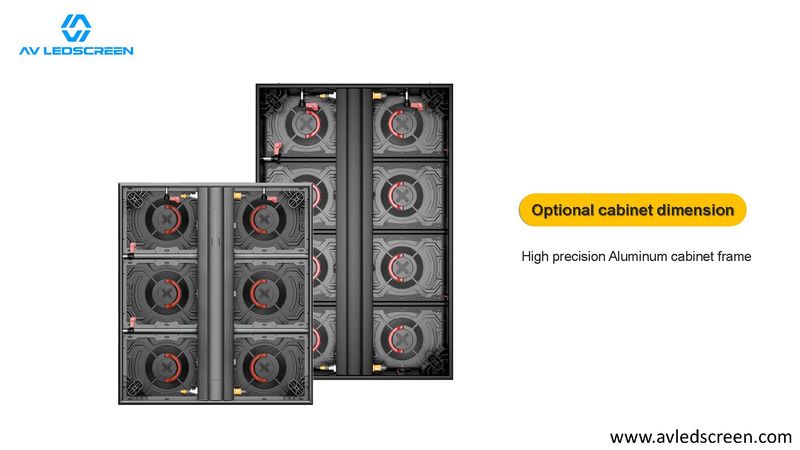

Cabinet size is uniform size of W800*H900mm or W800*H1200mm or custom size W1200*H1200mm.

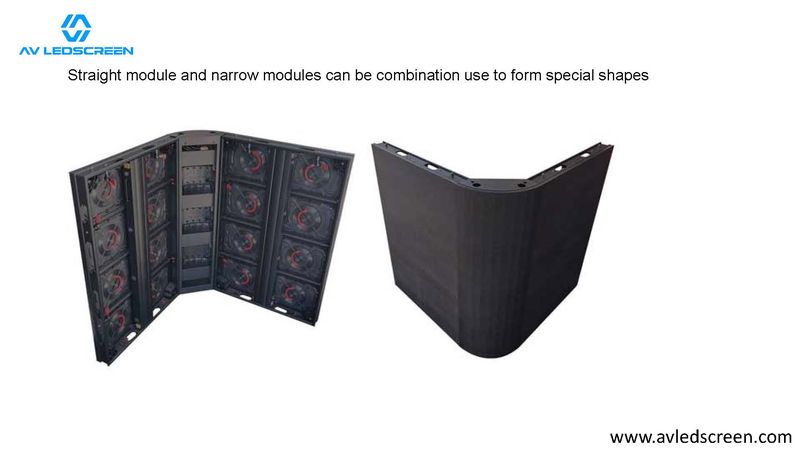

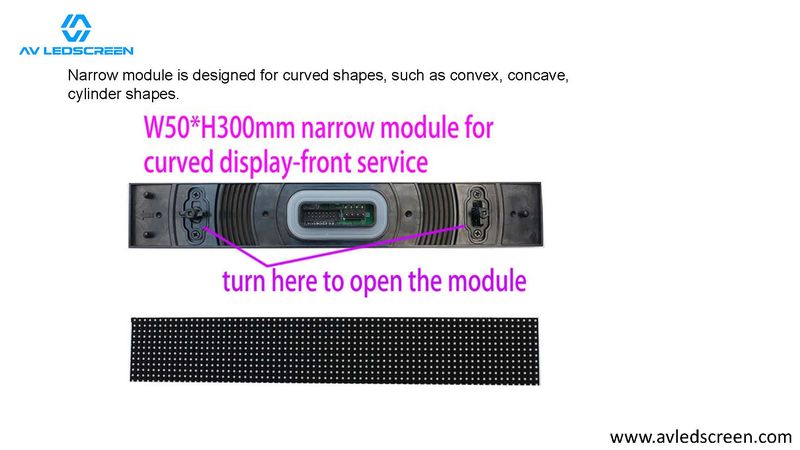

and it is also with customized narrow modules for outdoor curved shapes. such as convex, concave, cylinder shapes.

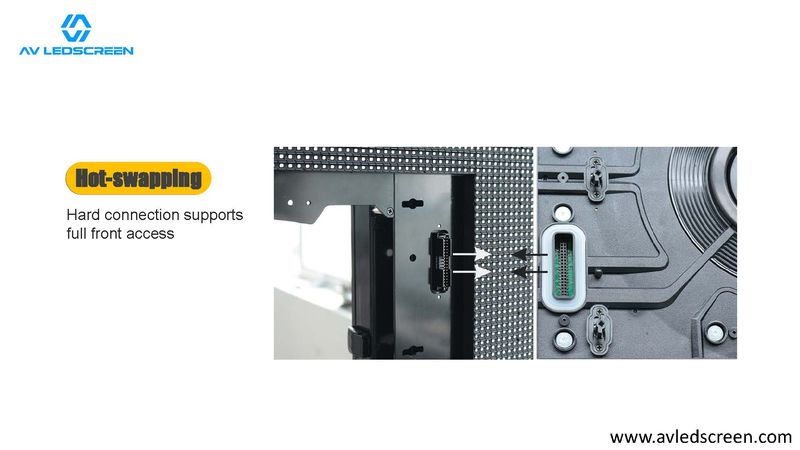

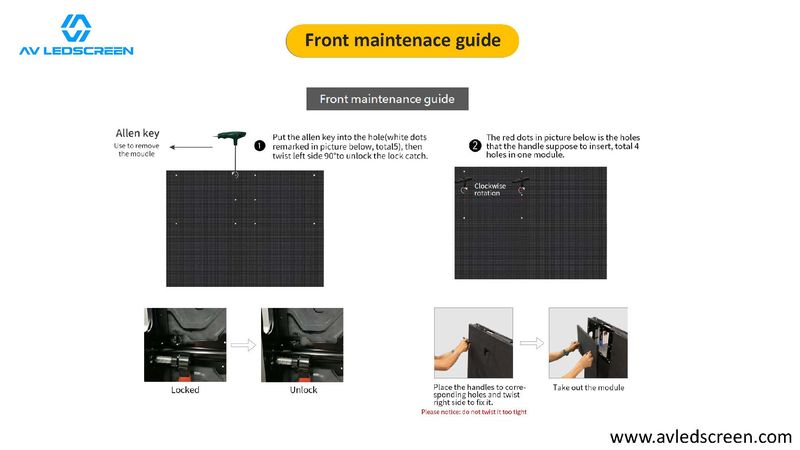

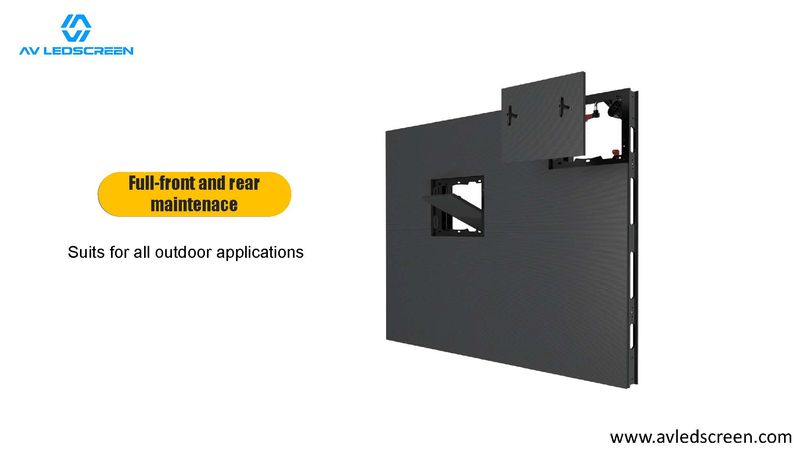

all the modules support both front and back service.

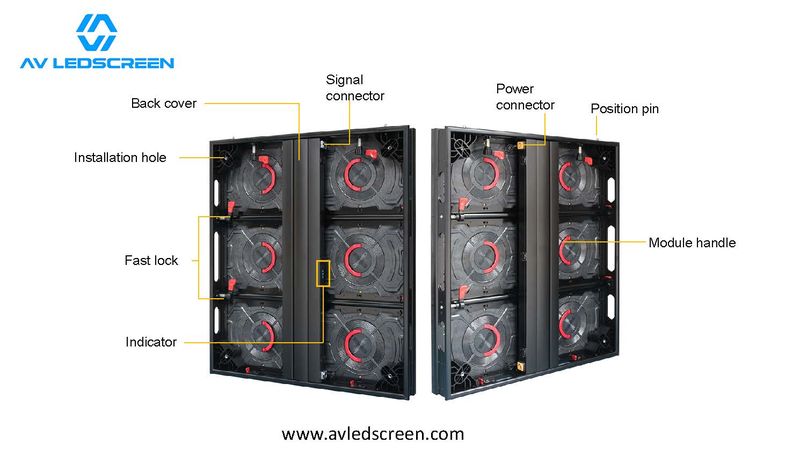

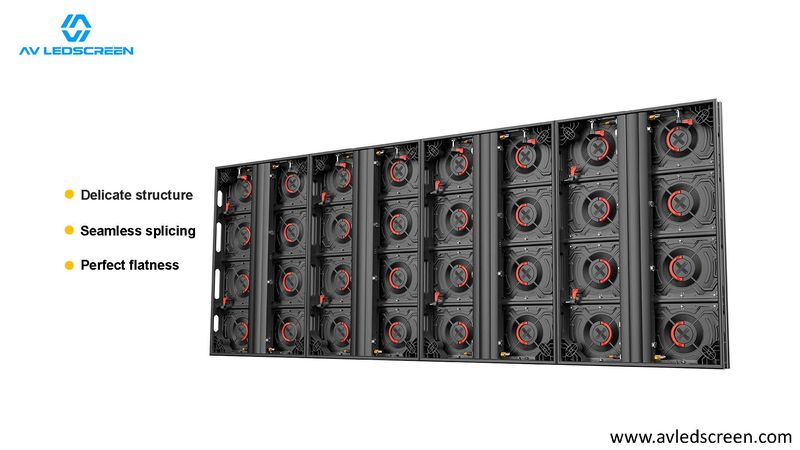

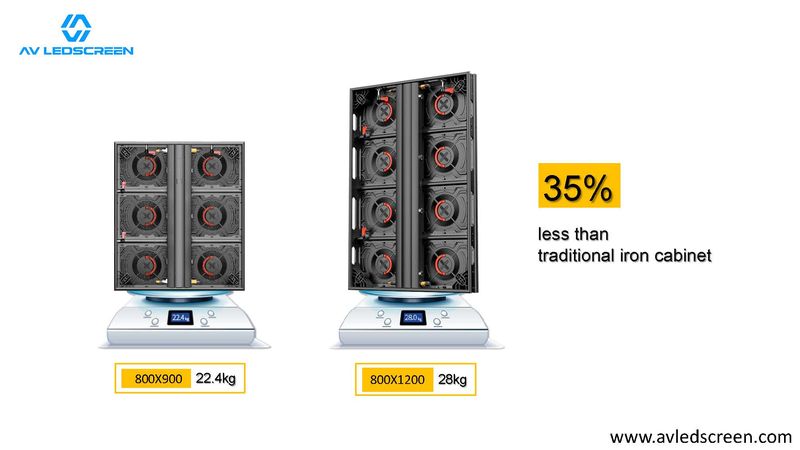

With high end aluminum cabinet, and modular power and controller design. it is suitable for most outdoor LED billboards installations.

Pixel pitch	P4.16	P5	P6.25	P8.33	P10
SMD type	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical density (dots/sqm)	57600	40000	25600	14400	10000
Module resolution	96X72	80X60	64X48	48X36	40X30
Module dimension	400X300	400X300	400X300	400X300	400X300
Module quantity (W×H)	2X3 / 2×4	2X3 / 2×4	2X3 / 2×4	2X3 / 2×4	2X3 / 2×4
Panel resolution (W×H)	192X216 / 192X288	160X180 / 160X240	128X144 / 128X192	96X108 / 96X144	80X90 / 80X120
Panel size (mm)	800×900 / 800X1200	800×900 / 800X1200	800×900 / 800X1200	800×900 / 800X1200	800×900 / 800X1200
Flatness (mm)	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1
Maintenance mode	Front & Rear	Front & Rear	Front & Rear	Front & Rear	Front & Rear
Brightness (nits)	6500	6500	6500	6500	6500
Color temperature (K)	3200-9300 optional	3200-9300 optional	3200-9300 optional	3200-9300 optional	3200-9300 optional
Grey scale	65536	65536	65536	65536	65536

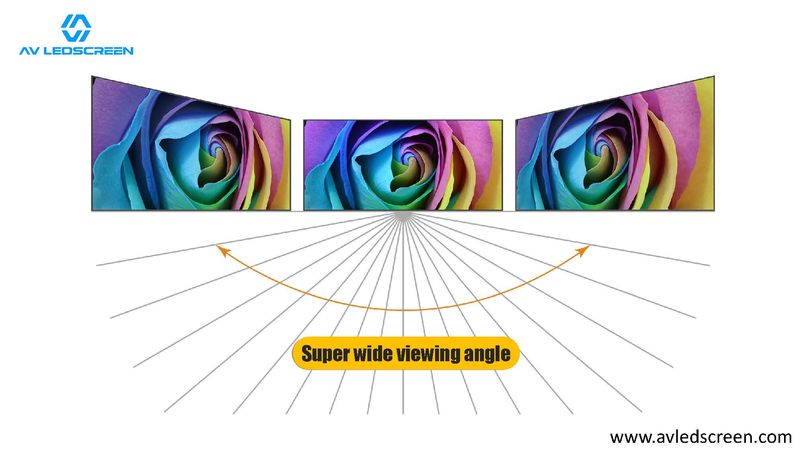

Viewing angle (V/H)	160°/ 140°	160°/ 140°	160°/ 140°	160°/ 140°	160°/ 140°

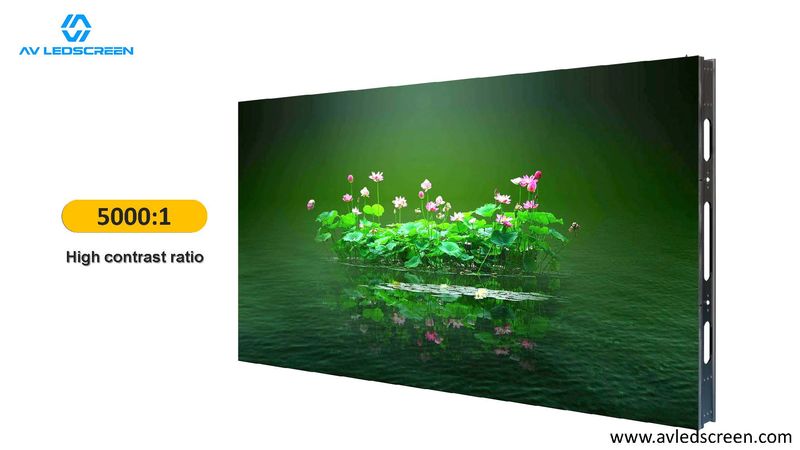

Contrast ratio	5000:01:00	5000:01:00	5000:01:00	5000:01:00	5000:01:00
Frame-changing frequently	50/60	50/60	50/60	50/60	50/60
Drive mode	Constant current	Constant current	Constant current	Constant current	Constant current
Drive mode	1/6 scale	1/6 scale	1/6 scale	1/3 scale	1/2 scale
Refresh rate	3840	3840	3840	3840	3840

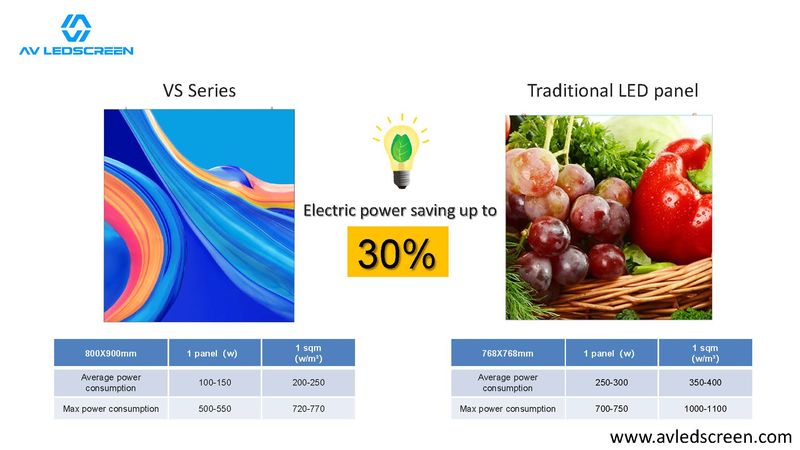

Max power consumption (w/m2)	600-800	600-800	600-800	600-800	600-800
Avg. power consumption (w/m2)	100-200	100-200	100-200	100-200	100-200
Electric power requirements	AC90-264V	AC90-264V	AC90-264V	AC90-264V	AC90-264V
Electric power requirements	47-63Hz	47-63Hz	47-63Hz	47-63Hz	47-63Hz
