Indoor flexible led display module

1) Light weight and slim design

2) Suitable for making many special shape such as convex and concave led display, wavy shape and curved shape.

3) So far the smallest pixel pitch indoor flexible led display

4) Modules front service by magnet bolts

Inquiry
  • Description
  • PDF Download
  • Video show

Visualpower indoor flexible indoor led display module is designed for special shape led dispalys, such as led column display, convex and concave shape led display, wavy shape led display, and so on.

Compared to traditional rigid led display modules, this design can bend and twist.

The minimum diameter it can make for a column shape LED display is 300mm, the pixel pitch now can do below 2mm.

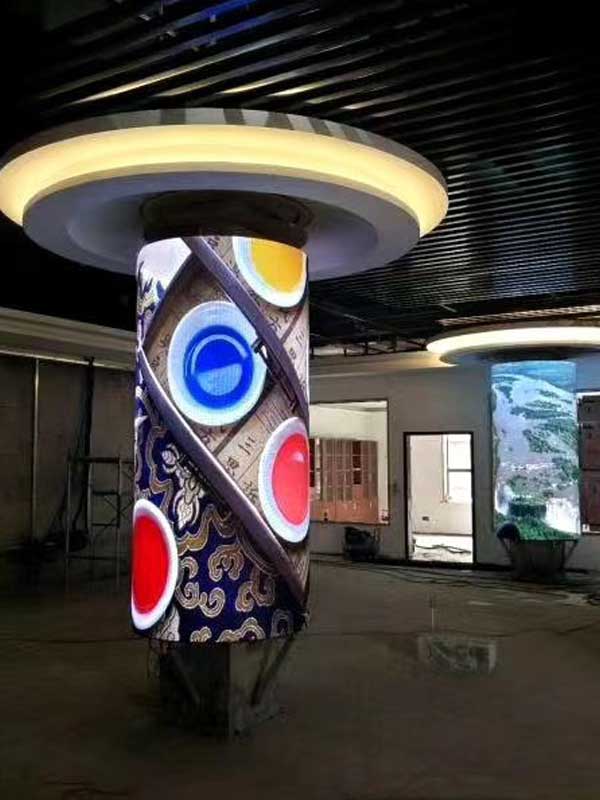

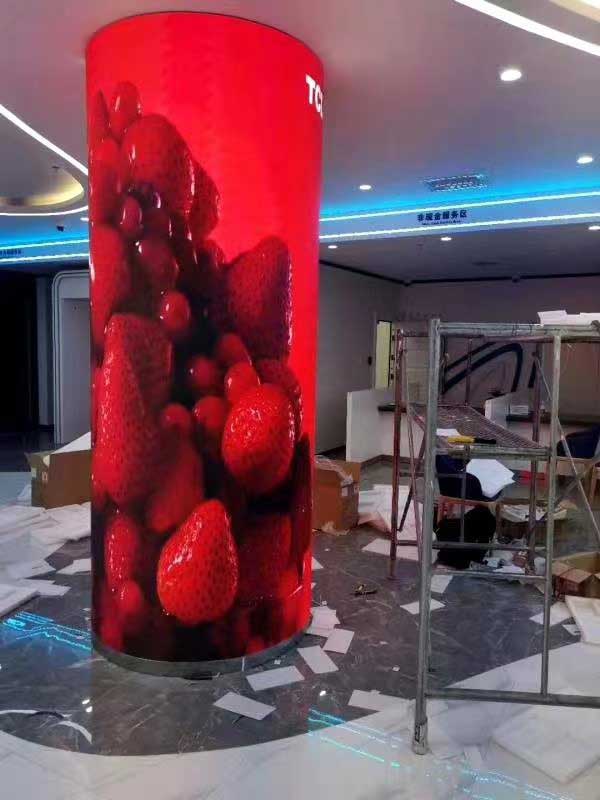

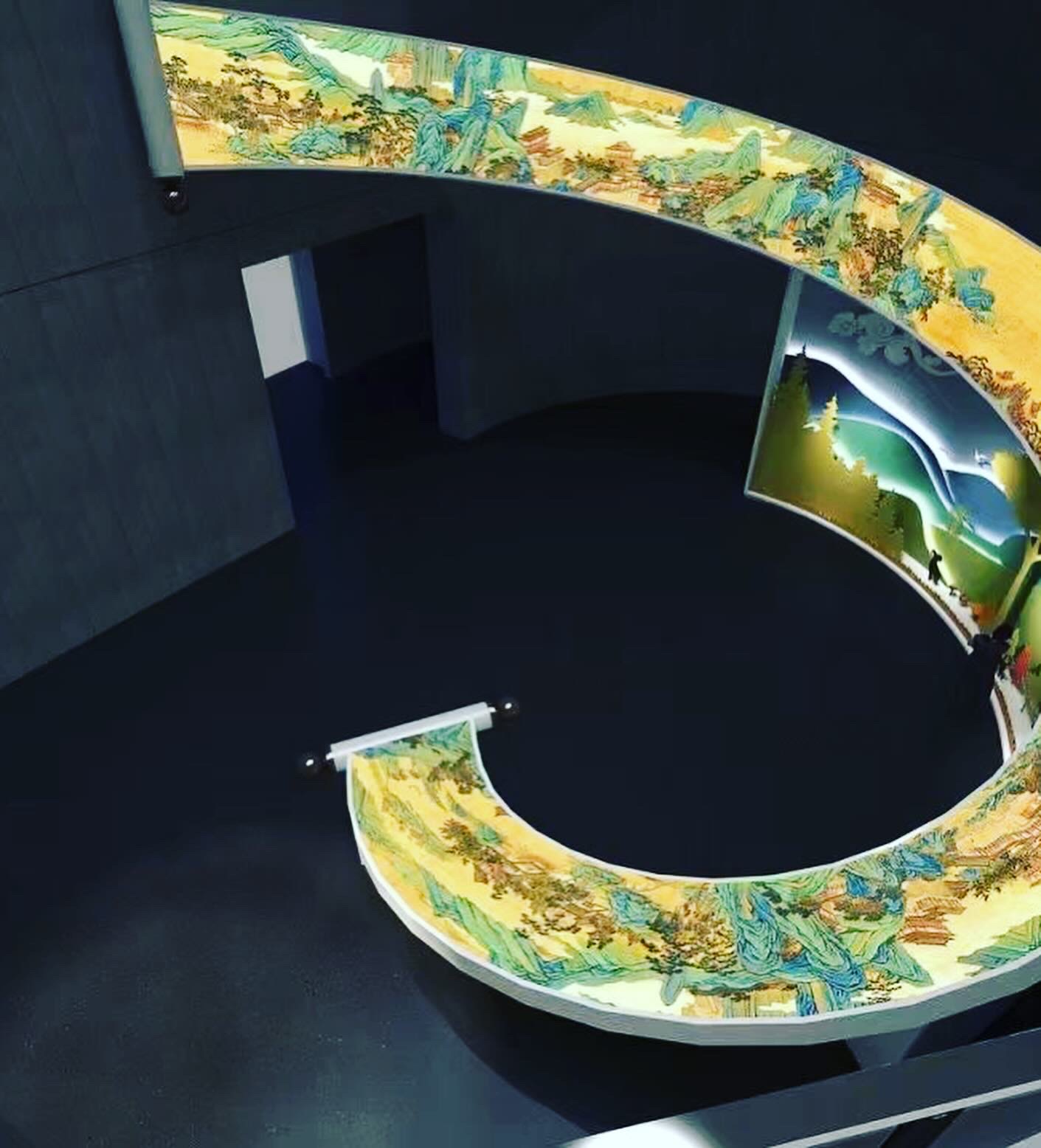

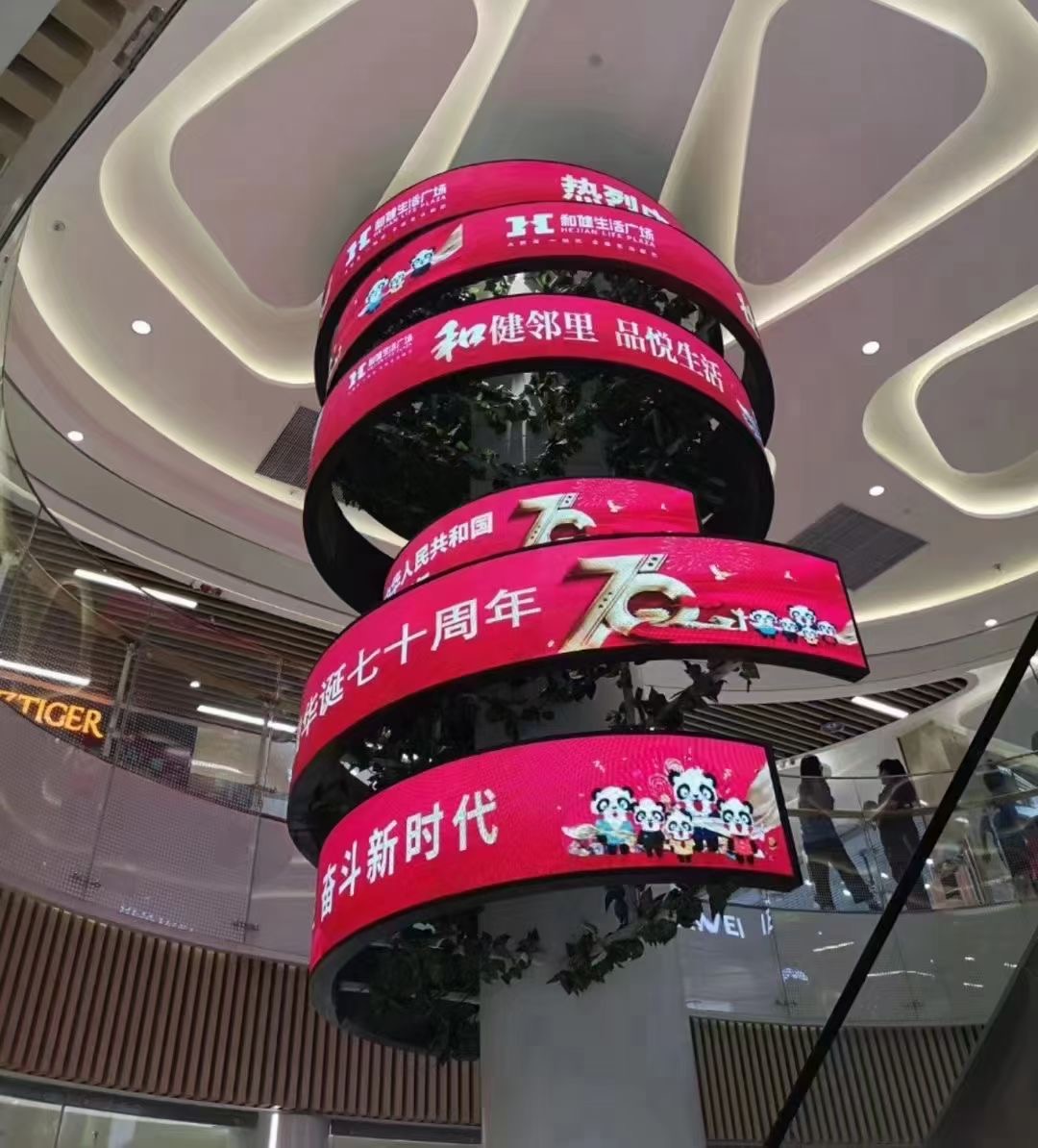

For some short distance viewing distance special shape design, such as cylinders, columns, circles or wavy shapes, this can be a good choice.



Indoor Flexible LED display module specs

Item P1.875 P2 P2.5 P3 P4 P4 P1.86 P2 P2.5
LED Lamp SMD1515 SMD1515 SMD2020 SMD2020 SMD2020 SMD2020 SMD1515 SMD1515 SMD1515
Pixel pitch 1.875mm 2mm 2.5mm 3mm 4mm 4mm 1.86mm 2.0mm 2.5mm
Pixel density
(pixels/m2)
284444 250000 160000 111111 62500 62500 289,050 250,000 160000
Module resolution(W x H) 128X64 120X60 96X48 80X40 60X30 64X32 172 X 86 160 X80 128X64
Module size(W x H) 240X120mm 240X120mm 240X120mm 240X120mm 240X120mm 256X128mm 320X160mm 320X160mm 320X160mm
Module weight(kg) 0.35 0.35 0.35 0.35 0.35 0.35 0.5 0.5 0.5
Max. power(W) 25 25 25 25 25 25 25 25 25
Scan number 32 30 24 20 15 16 43 40 32
Driver IC ICN2153, 3840HZ refresh ICN2153, 3840HZ refresh ICN2153, 3840HZ refresh ICN2153, 3840HZ refresh ICN2153, 3840HZ refresh ICN2153, 3840HZ refresh ICN2163, 3840HZ refresh ICN2163, 3840HZ refresh ICN2153, 3840HZ refresh
