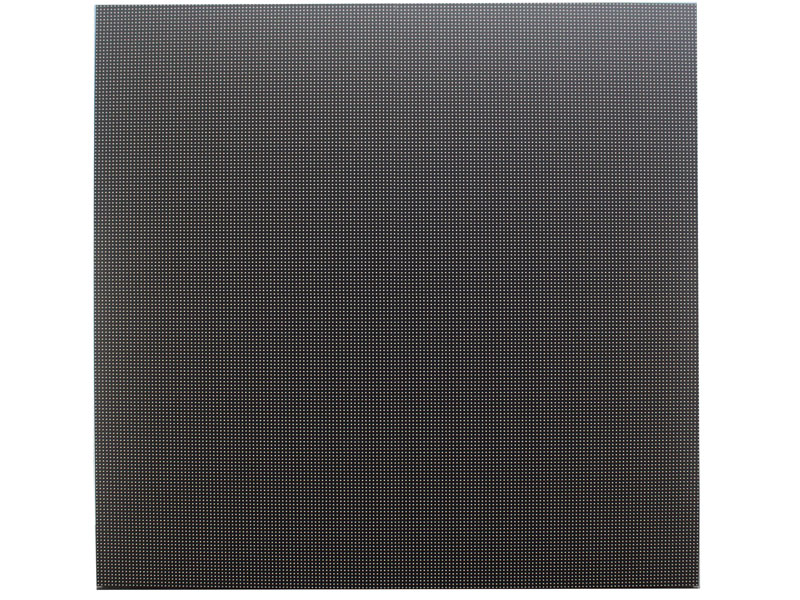

P2.976 outdoor event rental led display

P2.976 outdoor event rental led dispaly is designed for high end outdoor and indoor events.

This pixe pitch level can not only be used for outdoor, it can also be turned down the brightness and used for indoor applications.

for event companies, it is a one for all events design.

With standard 500*500mm panel, it is easy to form differnet display sizes either 16:9 or 4:3.

PDF DownloadInquiry
  • Description
Model P2.976
Pixel configuration SMD1515
Pixel pitch 2.976mm
Scan rate 1/21 scan, constant current
Module size W×H) 250*250MM
Resolution per module W 84 x H 84pixels

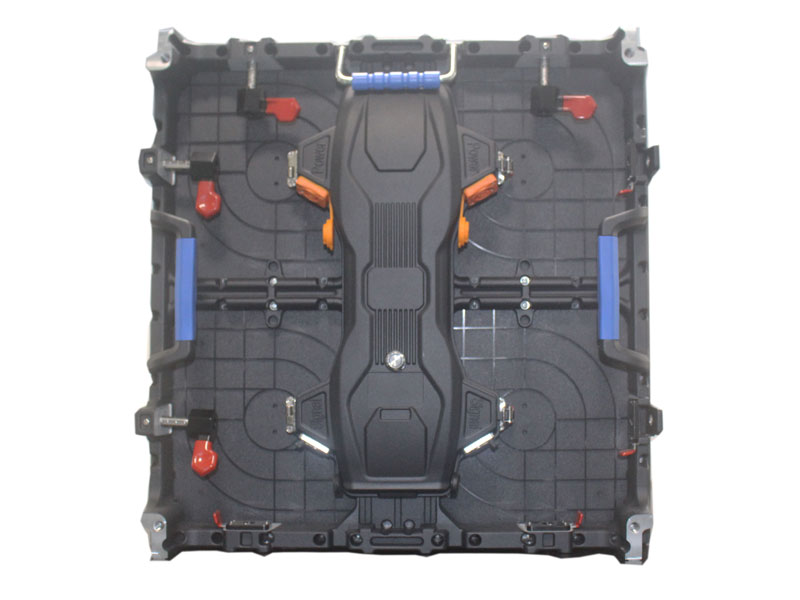

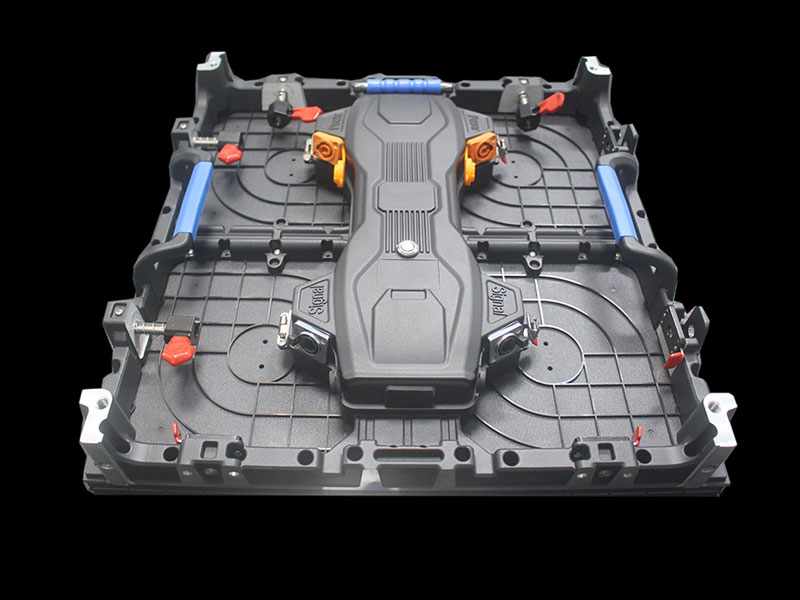

Standard cabinet dimension(W×H×D) 500×500×75mm
Pixel resolution/cabinet (W×H) 168x 168pixels
Resolution/sqm 112,896dots/㎡
Minimum viewing distance Minimum 2 meters
Max.Brightness 4500nits
Gray scale 16 bit, 8192 steps
Color Number 281 trillion
Display Mode Synchronous with video source
Refresh rate ≥3840HZ
Viewing angle(degree) H/160,V/140
Temperature range -20℃ to +60℃
Ambient Humidity 10%-99%

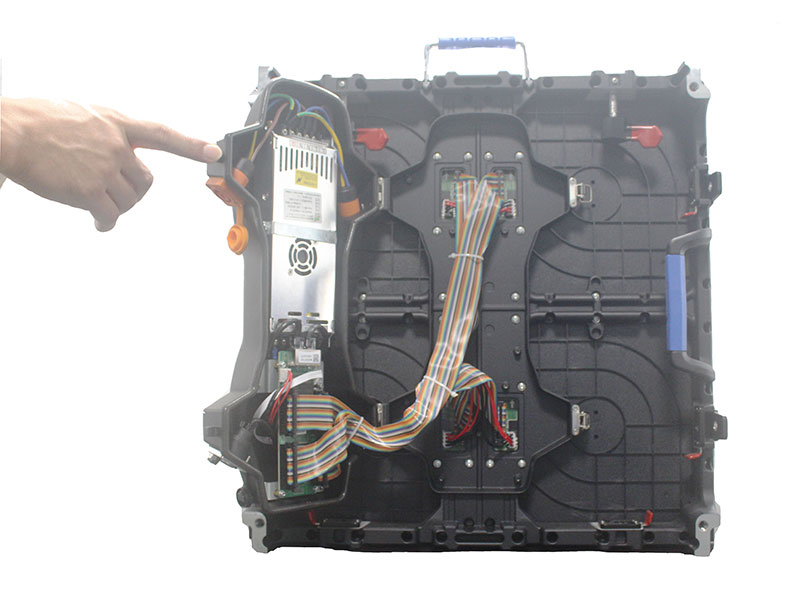

Service access Rear
Standard cabinet weight 8.5kgs/cabinet
Max.Power Consumption Max: 680w/sqm
Ave. Power consumption Ave.340W/sqm
Protection Level Front: IP65 Rear: IP54
Lifetime to 50% brightness 75,000hr
LED Failure Rate <0,00001
MTBF > 10.000 hours
Input power cable AC110V /220V
Signal input DVI
